Drainage Inlet and Culvert Protection on Burn Scars: A Field Guide for Post-Fire Road Crews
When a wildfire moves across a watershed, the most expensive damage often arrives months later, in the rain. Once vegetation is gone and the top inch of soil has been baked into a water-repellent crust, rainfall that the slope used to absorb runs off in minutes instead of hours. That runoff carries ash, sand, gravel, woody debris, and sometimes boulders straight into the road prism below. The National Weather Service describes the result simply: burn scars can turn ordinary storms into flash floods and debris flows for up to five years after a fire, and rainfall rates that would be harmless on healthy ground become dangerous on a burned slope.
For the road crews and facilities engineers who own the drainage assets downhill of those slopes, that means the work of protecting culverts, drop inlets, and ditch lines starts the day fire suppression ends and continues through several wet seasons. This is a practical look at what works, what does not, and where sandless sandbags fit into the toolkit.
Why ordinary storms become extraordinary on a burn scar
A healthy forest or chaparral watershed is a sponge. Tree canopy slows raindrops, duff and root mats hold soil in place, and live vegetation pulls water back out of the ground. Fire removes all three of those layers at once. On top of that, intense heat creates a thin hydrophobic layer a fraction of an inch below the surface that actively repels water for one to three years.
The combined effect, documented in NWS burn scar guidance, is that peak runoff from a moderate storm can jump several times above pre-fire levels. The first significant rainfall after a fire is usually the worst. The debris is loose, the soil is sealed, and there has not yet been a smaller event to flush the system.
Downhill of that runoff, the bottleneck is almost always the same: a corrugated metal pipe sized for the pre-fire watershed, with a catch basin that was never built to filter sediment by the cubic yard. When the inlet plugs, water leaves the drainage and finds the road surface, the shoulder, and whatever buildings sit below.
What state DOTs and federal land managers actually do
Post-fire road treatments are well documented. A survey of state DOT practice on post-fire roadside design identifies the treatments that engineers in California, Colorado, Arizona, and Nevada rate as most effective. The list reads like a winter prep checklist for any drainage manager working below a burn:
- Channel debris cleaning, including catchment basin cleanout, before the first storm of the season
- Cross drains, culvert overflows, and bypass routes so a plugged culvert does not put water on the pavement
- Culvert inlet and outlet armoring with rock slope protection or riprap
- Culvert upgrading where the burned-watershed flow exceeds pre-fire design
- Ditch armoring to keep increased flow from cutting into the back slope
- Trash racks and debris fences at the top of channels and culvert inlets
- Storm patrol crews who clean inlets and grates between events while the rain is still falling
Two patterns show up across every survey response. The first is that storm patrol is what saves the road. The hardware is only as good as the crew that keeps it clear between storms. The second is that the most expensive failures are almost always upstream of an inlet that was protected too late, or with the wrong materials.
The temporary side of the kit
Permanent solutions — riprap aprons, larger pipes, debris basins, secant pile walls — are exactly the kind of work being executed in places like the Pacific Coast Highway corridor right now. A $10.5 million Caltrans emergency project on roughly nine miles of PCH from Pacific Palisades to north of Carbon Beach Terrace explicitly describes "placing k-rail and sandbags to protect homes and drainage inlets and clearing the highway from storm damage, debris flows and mudslides." Adjacent emergency projects on the same corridor describe installing steel plates to control debris flow and rockfall, temporary k-rail to protect nearby homes, and "protecting drainage inlets" as a distinct line item.
That phrase — protecting drainage inlets — covers a lot of ground. In practice it means stacking a temporary barrier around or upstream of a catch basin so that sediment-laden flow has to slow down before it tries to enter the pipe. The traditional materials are concrete barriers, gravel-filled bags, straw wattles, silt fence, and burlap-wrapped filter fabric. Each has strengths. Each has a cost the crew pays in time, weight, and disposal.
Where traditional sandbags break down on a burn scar
Filling sandbags with sand is one of the slowest jobs on any storm response. A two-person crew can fill, tie, and stack a few hundred bags an hour under ideal conditions. On a fire-affected slope, with windblown ash everywhere and a forecast that gives a crew six or eight hours before the first cell hits, that math is brutal. Add the weight — a wet sandbag is roughly 40 pounds, and a single drainage inlet may need 30 of them — and the labor cost of a fully traditional response starts to dominate the project.
The other problem is the spec. Crews working below burn scars are not really trying to block water. They are trying to filter sediment out of water so the inlet stays open, and to redirect surface flow around obstacles long enough for the worst of a storm cell to pass. A traditional sandbag does both, but it brings dead weight that a road crew has to source, deliver, fill on site, and haul away when the season ends.
Where sandless sandbags fit
A StormBag ships dry and flat, weighs about a pound, and expands to roughly 35 pounds in three to five minutes when exposed to fresh water. The relevant numbers for a road crew are not marketing claims, they are logistics:
- One pallet of StormBag holds the equivalent flood-protection footprint of about 25 pallets of traditional sand-filled bags, by weight at deployment
- Hydration uses ambient runoff, pre-storm watering with a tender, or even spray bar irrigation on the slope above an inlet
- Storage is dry and indoor — unopened cases store flat for years in a maintenance yard without degrading
- Once hydrated, the bag stays expanded through the storm event and through the period of repeated wetting and partial drying that is typical of a winter on a burn scar
The honest tradeoff: StormBag is not a replacement for k-rail, riprap, or a properly sized culvert. It is a fast, lightweight, low-labor option for the temporary half of the inlet-protection job — the perimeter around a catch basin, the diversion berm at the top of a channel, the redirect line around a chronically plugging grate. Combined with permanent armoring downstream, it lets a crew put real protection in place before a storm window closes, and lets a storm patrol replace or reposition individual bags during the event without staging a sand pile next to the work area.
A simple field deployment sequence
For an inlet on a state route below a fresh burn, a workable sequence looks like this:
- Pre-season: clean the catch basin and any upstream debris rack, document the pre-storm condition with photos, and stage cases of dry sandless bags in the maintenance yard nearest the affected route. The bags can sit on a pallet for years without rotation.

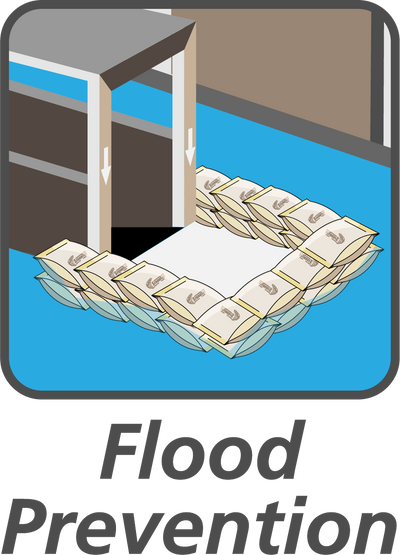

- Pre-storm, within 48 hours of forecast onset: hydrate enough bags to build a horseshoe-shaped berm around the inlet, with the opening pointing downhill, and a second short line across the back slope ditch to slow water before it reaches the basin. Bags can be hydrated in the truck bed with a tank-fed hose; the typical fill rate is roughly 100 bags in 30 minutes.
- During the event: storm patrol focuses on keeping the inlet open. If sediment starts to overtop the berm, additional dry bags can be hydrated and stacked in minutes. A crew with a pallet on the truck can respond to a failing inlet without leaving the storm.
- Post-event: clear sediment from the catch basin, inspect the berm, and replace or reposition any bags that moved. Bags that were used will have absorbed runoff, so they should be treated as wet material and disposed of according to local DOT spec.
None of this replaces the engineered solution. It is what a crew does in the gap between when the slope burned and when the permanent culvert upgrade is on contract.
What to plan for over the next two seasons
The National Interagency Fire Center's May 2026 outlook forecasts above-normal significant fire potential for much of northern California beginning in June and expanding to most of the state by July and August. As of the end of April, U.S. wildfire acreage was running at 194 percent of the previous 10-year average. Whatever burns in the back half of 2026 is going to need post-fire drainage management through the 2026-27 and 2027-28 wet seasons. Crews that pre-position the right mix of permanent and temporary protection now — and that have a fast option for the inlet-by-inlet temporary work — will spend their storm windows protecting roads instead of looking for materials.
If you manage drainage assets on a route below a burn scar and want to put the dry-storage half of your kit in place before the first storm of the season, StormBag ships from California and our Flood Watch tool tracks NWS flood and flash-flood alerts for every state so a yard supervisor sees the same warning the dispatch desk does.
This article is general information for road crews and facilities managers working below post-fire watersheds. Specific drainage designs should follow your agency's standards and the recommendations of the local Watershed Emergency Response Team or equivalent post-fire assessment.
